Our ever-evolving list, in order, of recommended
Digital to Analog Converters (DACs), and Transports		 CD PLAYERS


Burmester Audio
969 Reference CD Transport $28,000.00
Tubed No
Inputs One input for clock synchronization with external Burmester DAC
Digital outputs 2 x Toslink, AT&T, AES/EBU, 2 x RCA 75 ohms, RCA direct and RCA transformer
Redbook support Yes
SACD support No
DVD-A support No
Direct drive or belt-driven Belt
Remote control Yes
External power supply No
Top or front loading Top
Weight 58 lbs.
Other Three floating-chamber housing construction with special damping system for complete insulation from mechanical disturbances. Separate base for additional acoustic insulation.

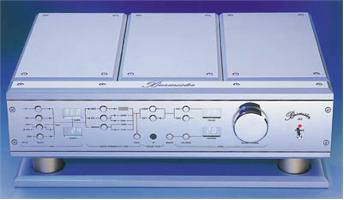

970 SRC Reference Digital to Analog Converter (DAC) $31,000.00
Tubed No
Digital inputs AT&T (ST), Toslink, AES/EBU, 2 x RCA
Digital outputs RCA, Toslink
HCDC® support Yes
SACD support No
DVD-A support No
High-resolution support 96kHz/24bit
Upsampling / oversampling / upconversion 96kHz/24bit
Signal (180 degree phase) inversion capability Yes
Integral pre-amplifier (i.e. variable output) Yes
Pre-amplifier analog inputs No
Single-ended (RCA) analog outputs Two (fixed and variable output)
Balanced (XLR) analog outputs Two (fixed and variable output)
Output impedance N/A
Rise time N/A
Slew rate N/A
Remote control Yes
External power supply Yes (18 lbs.)
Weight 89 lbs.
Other Choice of five digital and two analog filter settings




OUR TAKE: TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
Smoothness TBD
Clarity TBD
Agility TBD
Solidity TBD
Air TBD
Slam TBD
Naturalness TBD
Enjoyability TBD
Microdynamics TBD
Macrodynamics TBD
Glareless TBD
Power TBD
Drive TBD
Ergonomics TBD
Hours spent with digital components: 1 Systems heard with digital components: 2 TBD
Recommended Cabling: All.







MBL
1621 Reference CD Transport $17,050.00
Tubed No
Inputs N/A
Digital outputs 1 x Toslink, AES/EBU (XLR), 2 x S/P-DIF (BNC & RCA 75 ohms)
Redbook support Yes
SACD support No
DVD-A support No
Direct drive or belt-driven direct drive
Remote control Yes
External power supply No
Top or front loading Top
Weight 66.15 lbs.
Other
1611D 24 bits @ 96/192kHz Reference DAC $18,607.00
Tubed No
Digital inputs AT&T (ST), Toslink, AES/EBU, 2 x RCA
Digital outputs 2 x AES/EBU, 2 x SP/DIF to Cinch, 2 x S/P-DIF to BNC, 2 x optical fibres to ST and 2 synthetic conductors to Toslink.
HCDC® support N/A
SACD support Yes
DVD-A support No
High-resolution support 96/192kHz/24bit
Upsampling / oversampling / upconversion 96/192kHz/24bit
Signal (180 degree phase) inversion capability N/A
Integral pre-amplifier (i.e. variable output) Yes
Pre-amplifier analog inputs 1 x RCA and 1 x XLR
Single-ended (RCA) analog outputs One
Balanced (XLR) analog outputs One
Output impedance 100 ohms RCA, 200 ohms XLR
Rise time N/A
Slew rate N/A
Remote control Yes
External power supply No
Weight 64 lbs.
Other




OUR TAKE: TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
Smoothness TBD
Clarity TBD
Agility TBD
Solidity TBD
Air TBD
Slam TBD
Naturalness TBD
Enjoyability TBD
Microdynamics TBD
Macrodynamics TBD
Glareless TBD
Power TBD
Drive TBD
Ergonomics TBD
Hours spent with digital components: 3 Systems heard with digital components: 3 TBD
Recommended Cabling: All.

OTHER TAKES
Reviewers Reviews









Audio Note UK
CDT Two (CDT-2) Transport $3,300.00
Tubed No
Inputs No
Digital outputs RCA
Redbook support Yes
SACD support No
DVD-A support No
Direct drive or belt-driven Direct drive
Remote control Yes
External power supply No
Top or Front loading Top
Weight ~10 lbs
Other
DAC 4.1X Balanced Signature $18,000.00
Tubed Yes
Digital inputs RCA & BNC, plus XLR AES/EBU
Digital outputs 1 x LEMO
HCDC® support N/A
SACD support No
DVD-A support No
High-resolution support 24/96 (DAC 5 special)
Upsampling / oversampling / upconversion 1xoversampling™
Signal (180 degree phase) inversion capability Yes
Integral pre-amplifier (i.e. variable output) No
Pre-amplifier analog inputs None
Single-ended (RCA) analog outputs 2
Balanced (XLR) analog outputs 1
Output impedance N/A
Rise time N/A
Slew rate N/A
Remote control No
External power supply No
Weight N/A
Other




OUR TAKE:  TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
Smoothness TBD
Clarity TBD
Agility TBD
Solidity TBD
Air TBD
Slam TBD
Naturalness TBD
Enjoyability TBD
Microdynamics TBD
Macrodynamics TBD
Glareless TBD
Power TBD
Drive TBD
Ergonomics TBD
Hours spent with digital components: 200 Systems heard with digital components: 2 TBD
Recommended Cabling: All.

OTHER TAKES
Reviewers Reviews









dCS

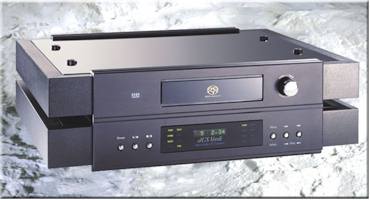

Verdi SACD/CD Transport $10,995.00
Tubed No
Inputs IEEE 1394, SDIF 2/Wordclack BNC
Digital outputs IEEE 1394, 3 x AES/EBU, S/P-DIF RCA or  BNC, S/P-DIF Toslink (optional ST), 3 x SDIF 2/Wordclack BNC
Redbook support Yes
SACD support Yes
DVD-A support No
Direct drive or belt-driven Direct drive
Remote control Yes
External power supply No
Top or Front loading Front
Weight 37.4 lbs
Other
Purcell 24/192 - DSD Digital Upsampler $7,995.00
Tubed No
Digital inputs RCA Coaxial, BNC Coaxial, AES/EBU, ST Optical - Optional
Digital outputs RCA Coaxial, BNC Coaxial, 2 x AES/EBU
HCDC® support Yes
SACD support Yes
DVD-A support No
High-resolution support 24 / 192
Upsampling / oversampling / upconversion Optional conversion of PCM to DSD
Signal (180 degree phase) inversion capability No
Remote control No
External power supply No
Weight 18.7 lbs.
Other Input Sample Rates: 32, 44.1, 48, 88.2, 96kS/s
Output Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s
5 Output Wordlength Settings
3 User selectable noise shaping settings
3 User selectable dither settings
4 User Selectable Interpolation Filters
Elgar Plus 24/192 - DSD D/A Converter $14,995.00
Tubed No
Digital inputs RCA Coaxial, BNC Coaxial, AES/EBU x 2, Toslink Optical, ST Optical
Digital outputs N/A
HCDC® support Yes
SACD support Yes
DVD-A support No
High-resolution support 24 / 192
Upsampling / oversampling / upconversion No
Signal (180 degree phase) inversion capability Yes
Integral pre-amplifier (i.e. variable output) Digital volume control (and optional digital balance control)
Pre-amplifier analog inputs No
Single-ended (RCA) analog outputs 1
Balanced (XLR) analog outputs 1
Output impedance 52 ohms (RCA), < 3 ohms (XLR)
Rise time N/A
Slew rate N/A
Remote control Yes, corded
External power supply No
Weight 26.4 lbs.
Other 6 User-Selectable Digital Filters




OUR TAKE:  TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
Smoothness TBD
Clarity TBD
Agility TBD
Solidity TBD
Air TBD
Slam TBD
Naturalness TBD
Enjoyability TBD
Microdynamics TBD
Macrodynamics TBD
Glareless TBD
Power TBD
Drive TBD
Ergonomics TBD
Hours spent with digital components: 3 Systems heard with digital components: 5 TBD
Recommended Cabling: All.

OTHER TAKES
Reviewers Reviews











Kondo Audio Note
M100 DAC $40,000.00
Tubed Yes
Digital inputs N/A
Digital outputs N/A
HCDC® support N/A
SACD support No
DVD-A support No
High-resolution support No
Upsampling / oversampling / upconversion N/A
Signal (180 degree phase) inversion capability N/A
Integral pre-amplifier (i.e. variable output) No
Pre-amplifier analog inputs None
Single-ended (RCA) analog outputs N/A
Balanced (XLR) analog outputs N/A
Output impedance N/A
Rise time N/A
Slew rate N/A
Remote control No
External power supply No
Weight N/A
Other




OUR TAKE:  TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
Smoothness TBD
Clarity TBD
Agility TBD
Solidity TBD
Air TBD
Slam TBD
Naturalness TBD
Enjoyability TBD
Microdynamics TBD
Macrodynamics TBD
Glareless TBD
Power TBD
Drive TBD
Ergonomics TBD
Hours spent with digital components: 0 Systems heard with digital components: 0 TBD
Recommended Cabling: All.

OTHER TAKES
Reviewers Reviews









C.E.C.
TL0 Mk 2 CD Transport $17,000.00
Tubed No
Inputs N/A
Digital outputs AES/EBU 110 Ohm, RCA (Cinch) 75 Ohm, ST-Link optical
Redbook support Yes
SACD support No
DVD-A support No
Direct drive or belt-driven Belt drive
Remote control Yes
External power supply Yes
Top or Front loading Top
Weight 36 lbs. (power supply 9 lbs.)
Other




OUR TAKE:  TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
Smoothness TBD
Clarity TBD
Agility TBD
Solidity TBD
Air TBD
Slam TBD
Naturalness TBD
Enjoyability TBD
Microdynamics TBD
Macrodynamics TBD
Glareless TBD
Power TBD
Drive TBD
Ergonomics TBD
Hours spent with digital components: 0 Systems heard with digital components: 0 TBD
Recommended Cabling: All.

OTHER TAKES
Reviewers Reviews









EMMLabs
Meitner DCC 2 Transport $5,000.00
? Tubed No
Inputs N/A
Digital outputs N/A
Redbook support Yes
SACD support Yes
DVD-A support No
Direct drive or belt-driven Direct drive
Remote control Yes
External power supply No
Top or Front loading N/A
Weight N/A
Other Not yet released
Meitner DCC 2 DAC $10,000.00
? Tubed No
Digital inputs N/A
Digital outputs N/A
HCDC® support N/A
SACD support Yes
DVD-A support No
High-resolution support N/A
Upsampling / oversampling / upconversion Conversion of PCM to DSD
Signal (180 degree phase) inversion capability N/A
Integral pre-amplifier (i.e. variable output) Yes
Pre-amplifier analog inputs 2
Single-ended (RCA) analog outputs N/A
Balanced (XLR) analog outputs N/A
Output impedance N/A
Rise time N/A
Slew rate N/A
Remote control Yes
External power supply No
Weight N/A
Other Not yet released
Meitner DAC 6 $9,000.00
Tubed No
Digital inputs SDIF-3 / RAW DSD for DSD
ST Optical for DSD
AES/EBU on 4 XLR connectors (stereo pairs) for PCM 24/16 bit: 44.1 / 48 / 88.2 / 96kHz
SDIF-2 (BNC connectors) for PCM
DSD on BNC connectors and/or optical ST connectors
Digital outputs SDIF-3 / RAW DSD for DSD , ST Optical for DSD
HCDC® support N/A
SACD support Yes
DVD-A support No
High-resolution support 24/96
Upsampling / oversampling / upconversion Conversion of PCM to DSD
Signal (180 degree phase) inversion capability No
Integral pre-amplifier (i.e. variable output) No (designed to be paired with Switchman MK.II, Switching Control Centre)
Pre-amplifier analog inputs No
Single-ended (RCA) analog outputs N/A
Balanced (XLR) analog outputs 6
Output impedance N/A
Rise time N/A
Slew rate N/A
Remote control Yes, corded
External power supply No
Weight N/A
Other Pictured: Pro audio DAC 8




OUR TAKE:  TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
Smoothness TBD
Clarity TBD
Agility TBD
Solidity TBD
Air TBD
Slam TBD
Naturalness TBD
Enjoyability TBD
Microdynamics TBD
Macrodynamics TBD
Glareless TBD
Power TBD
Drive TBD
Ergonomics TBD
Hours spent with digital components: 1/2 Systems heard with digital components: 1 TBD
Recommended Cabling: All.

OTHER TAKES
Reviewers Reviews









Weiss Medea
Weiss Medea (DAC) ~$11,000.00
Tubed No
Digital inputs Three AES/EBU XLR, Four 75 ohm S/PDIF RCA coaxial, TOSLINK optical
Digital outputs No
HCDC® support No
SACD support No
DVD-A support No
High-resolution support 24 bits / 192 kHz
Upsampling / oversampling / upconversion Sampling Frequencies: 44.1, 48.0, 88.2 or 96.0 kHz, 176.4 and 192kHz on two inputs
Signal (180 degree phase) inversion capability N/A
Integral pre-amplifier (i.e. variable output) Yes (discrete class A)
Pre-amplifier analog inputs 0
Single-ended (RCA) analog outputs 2
Balanced (XLR) analog outputs 2
Output impedance 0.2 ohm (very low)
Rise time N/A
Slew rate N/A
Remote control No
External power supply No.
Weight N/A
Other Dual-layer chassis (aluminum over steel)




OUR TAKE:  TBD

Company Sound* Rating 1 (poor) to 100 (fantastic)
Speed TBD
Detail TBD
