OVERVIEW: |
|
|
|
|
|
| |
Odin |
|
|
|
|
|
| |
Speaker cable |
|
|
|
|
|
| |
Interconnect |
|
|
|
|
|
| |
Digital interconnect |
|
|
|
|
|
| |
Power cord |
|
|
|
|
|
| |
Tonearm cable |
|
|
|
|
|
| |
Valhalla |
|
|
|
|
|
| |
Speaker cable |
|
|
|
|
|
| |
Interconnect |
|
|
|
|
|
| |
Digital interconnect |
|
|
|
|
|
| |
Power cord |
|
|
|
|
|
| |
Tonearm cable |
|
|
|
|
|
| |
|
|
|
|
|
|
| |
OFFICIAL
PRICES |
|
|
|
|
|
| |
|
|
|
|
|
|
|
Updated: April, 20011
(Prices subject to
change. Not responsible for errors. All prices in U.S. dollars. Prices do
not include shipping to purchaser) |
|
|
| |
 |
|

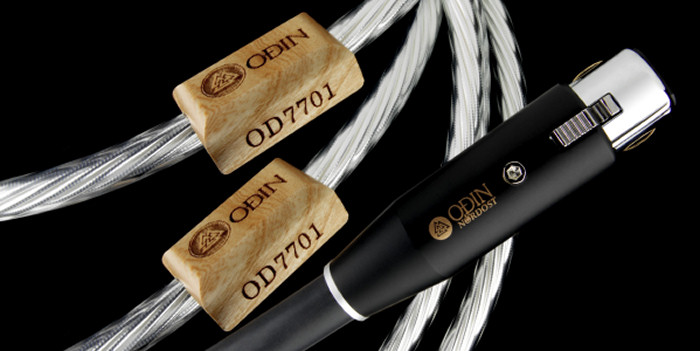

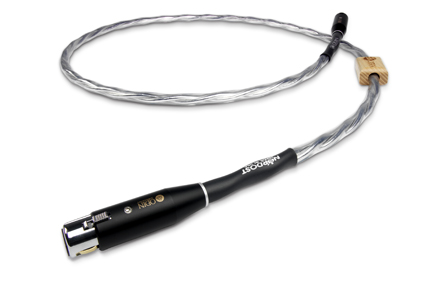

Supreme Reference Digital
interconnect |
|
|
|
|
|
Like 75 Ohm S/PDIF data transfer, the AES/EBU balanced
digital transmission standard depends on closely controlled impedance
parameters to achieve its stated performance. That requires a separate
cable construction, dedicated to balanced mode data connection, built
around industry standard XLR plugs.
The Odin 110 Ohm digital lead corresponds precisely to the AES/EBU
standard, two purpose built Total Signal Control (TSC) tubes delivering
“virtual solid” shielding to the Dual Micro Mono-Filament, silver-plated
solid-core conductors. The twisted construction and FEP insulation keep
the cable conveniently flexible whilst guaranteeing superior dielectric
performance and geometrical consistency. Two independent earth wires
maintain the integrity of the balanced grounding configuration, ensuring
common mode rejection of spurious noise, while the professional grade XLR
connectors maintain constant impedance across the cable termination,
maintaining the Odin’s accuracy in this demanding and critical
application.
|
INSULATION:: |
High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
|
CONSTRUCTION:: |
Precision Dual Micro Mono-Filament and TSC design |
|
CONDUCTORS:: |
2x 18 AWG extruded silver over 99.99999% OFC with 2x 22 AWG extruded
silver over 99.99999% OFC drain wires |
|
CAPACITANCE:: |
10.5pF/ft |
|
IMPEDANCE:: |
110 Ohms |
|
PROPAGATION DELAY:: |
89% speed of light |
|
OVERALL SHIELD COVERAGE: : |
100% Total Coverage |
|
DIAMETER: : |
10mm |
|
CONNECTORS: : |
Furatech Rhodium Balanced XLR |
75
ohm termination or
110 ohm (XLR) termination
1.25
meter: $10,000.00 each
2.50
meter: $13,000.00 each
5.00
meter: $19,000.00 each |
|
|
|
 |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
 |
|

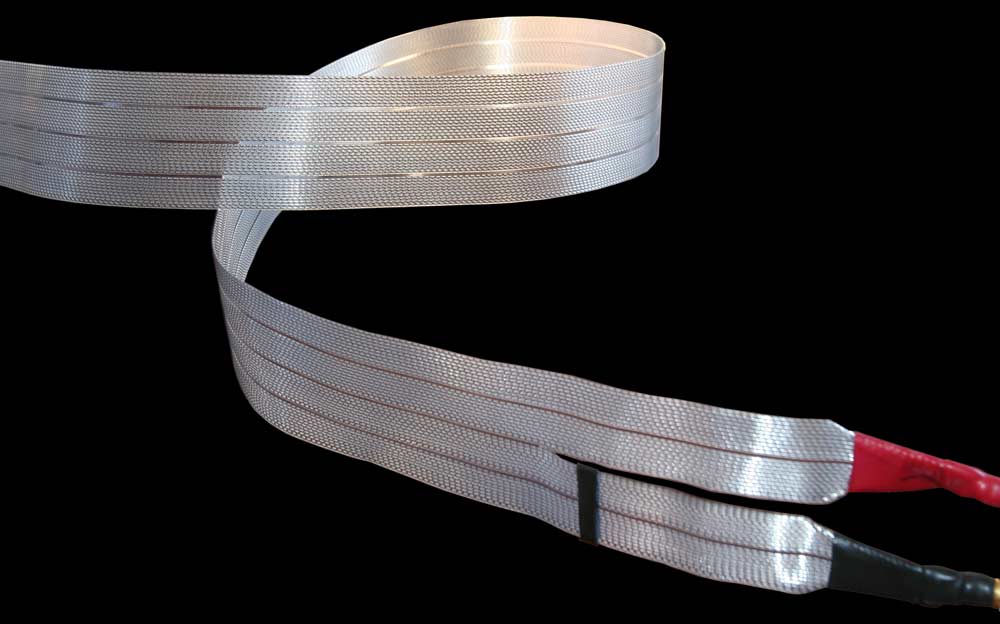

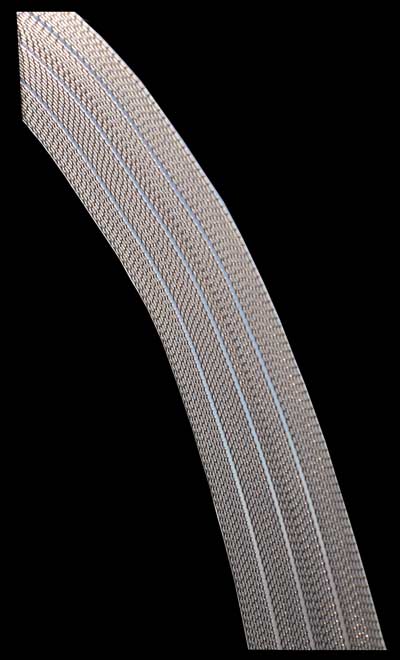

Speaker cable |
|
|
|
 |
|
The Valhalla speaker cable is
neutral, fast, clean, revealing, detailed and predictable: it sounds the
same in every system it is put in. It does not exaggerate details,
harmonics, bass or anything else - this cable's purpose to carry the
signal and nothing else.
-
Insulation:
High purity class 1 extruded FEP
-
Conductors:
x 40 optimized diameter in Micro Mono-Filament construction
-
Material:
78 microns of extruded silver over 99.999999% OFC
-
Capacitance:
11.8pF/ft
-
Inductance:
9.6uH/ft
-
DC
Resistance: 2.6ohms/1000ft (304M)
-
Speed:
96% speed of light
-
Dimensions:
2 1/8 inches or 5.5cm wide and 0.039 inches or 0.1mm thick
Valhalla Reference speaker cable is terminated for Bi-Wire as standard but
may be ordered as Shotgun or Bi-amp configurations.
1-meter (spades or bananas): $5,599.99/pair
Each additional meter: $2200.00/pair
10 inch jumper cables: $1,999.99.00
18 inch jumper cables: $2,499.99.00 |
|
|
|
| |
 |
|

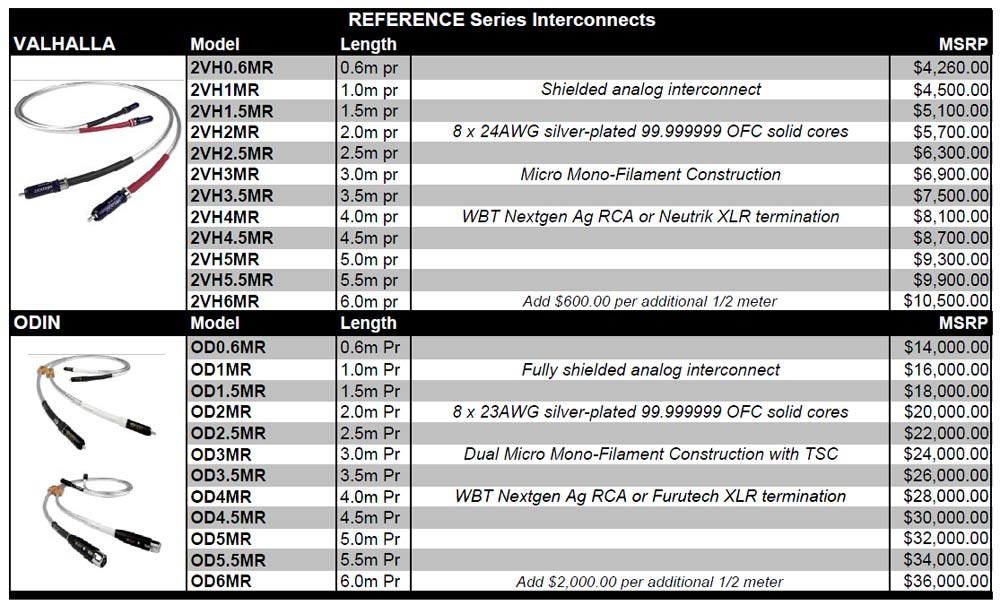

Interconnect |
|
|
|
 |
|
The Valhalla interconnect is one
of the best interconnects in the world; it is neutral, fast, clean,
revealing, detailed and predictable: it sounds the same in every system it
is put in. It does not exaggerate details, harmonics, bass or anything
else - this cable's purpose to carry the signal and nothing else.
-
Insulation:
High purity class 1 extruded FEP
-
Conductors:
x 8 optimized diameter in Micro Mono-Filament construction
-
Material:
78 microns of extruded silver over 99.999999% OFC
-
Capacitance:
22.0pF/ft
-
Dielectric
constant: 1.38
-
Propagation
Delay: 87% speed of light
-
Dimensions:
1/4 inches or 8mm diameter
0.6 meter (RCA):
$4,260.00/pair
1.0 meter (RCA):
$4,500.00/pair
0.6 meter (XLR):
$4,260.00/pair
1.0 meter (XLR):
$4,500.00/pair
Each additional meter: $1,200.00/pair |
|
|
|
|
| |
|
|

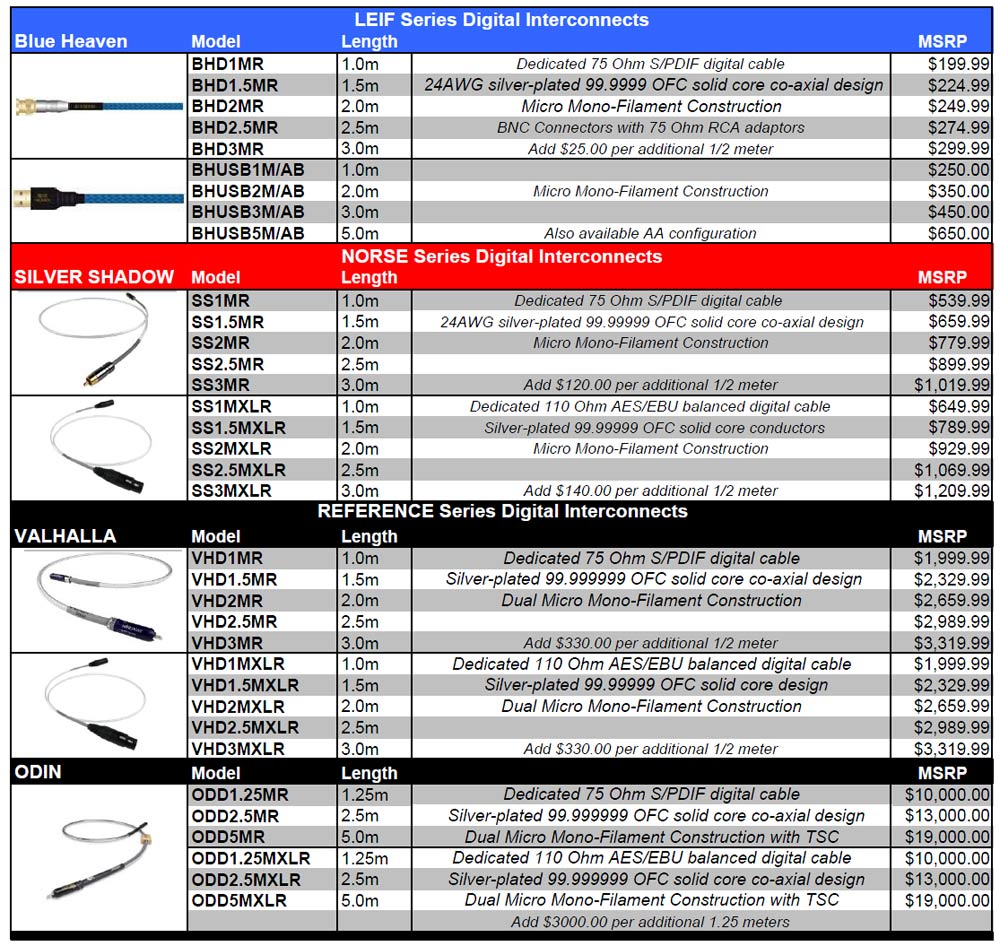

Digital
interconnect |
|
|
|
|
|
 |
|
The Valhalla digital interconnect
sounds very much like the Valhalla analog interconnect. It does not
exaggerate details, harmonics, bass or anything else - this cable's
purpose to carry the signal and nothing else.
-
Insulation:
FEP
-
Construction: Dual Micro Mono-Filament
-
Conductors:
99.999999% OFC with 78 microns of extruded silver:
75 ohm - 1 conductor
110 ohm - 2 conductors
-
Capacitance:
75 ohm: 15.3pF/ft,
110 ohm: 10.5pF/ft
-
Impedance:
75 ohm RCA/BNC
110 ohm AES/EBU
-
Speed:
88% speed of light
Available with 75 ohm RCA or BNC
connectors, or gold plated 110 ohm XLR connectors. The connectors used are
selected for their sonic properties and their impedance matching
characteristics which have a minimal effect on the digital signal.
75
ohm termination
1.0 meter: $1,999.99/each
Each additional meter: $660.00
110 ohm (XLR) termination
1.0 meter: $1,999.99/each
Each additional meter: $660.00 |
|
|
|
|
|
|
|
|
|
|
|
 |
|
