For SALE:
DEMO with full
warranty

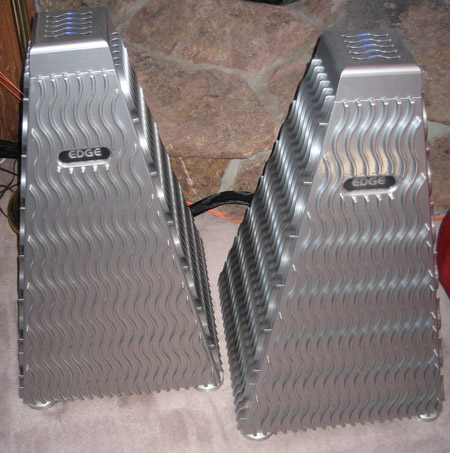

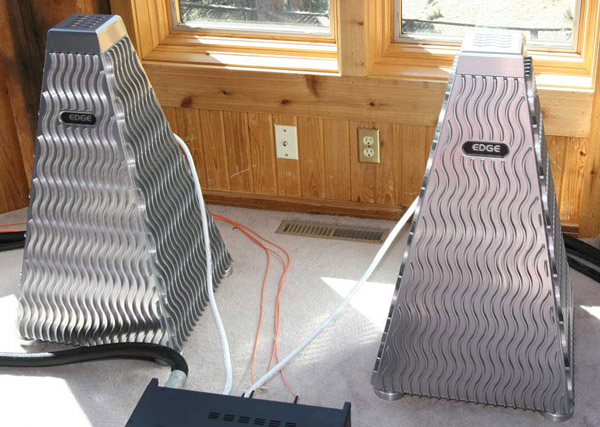

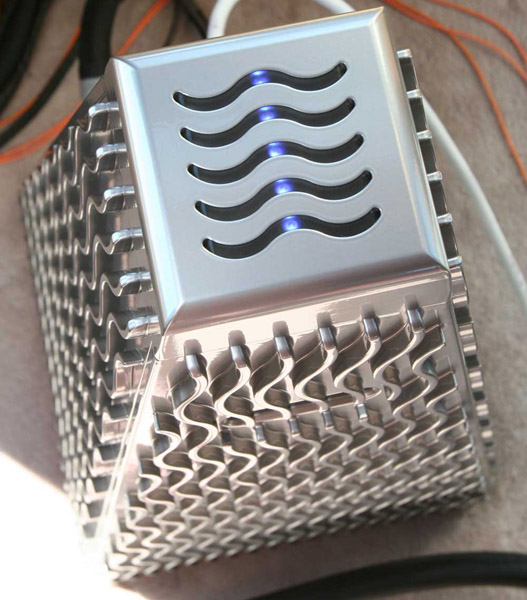

Edge NL Reference Amplifiers
The ultimate solid-state amplifier
The NL Reference is Edge Electronics' statement amplifier.
These 800 watt, 220 lb. monoblocks use a very high voltage, very high
output current design with Edge's trademark laser biasing.
Sonically, they are
smooth, fast, and quite authoritative,
with the capacity to handle any load.
About three years
old.
Fully broken in.
3 or 4 tiny, hard to see, scratches on the front heat sinks of one
amplifier.
Specifications:
Bias
Circuit: One 630 nm Bias Laser per channel
Output Circuit: 48 NPN Bipolar Transistors, 24 per channel
Power Supply Filtration: 280,000 µF: 14 x
10,000 µF per channel
RMS Power Output:
800 Watts per channel @ 8 Ohms
1600 Watts per channel @ 4 Ohms
3200 Watts per channel @ 2 Ohms
Total Harmonic Distortion: <0.01%
Transient Intermodulation Distortion: <0.01%
Slew Rate: 120 Volts per microsecond
Bandwidth: 1Hz-150KHz , + 0 -2.5dB
Input Impedance: 30,000 Ohms
Input Type: RCA, XLR
Output Impedance: 0.013 Ohms
Constant Current Capability: >100 Amps, >50 per independent
channel
Dimensions: 33" x 18" x 18" (HxWxD), 5" x 5" WxD at top
Weight: 440 (220 lbs each) [Shipping weight: 580 lbs crated]
Want more information
about the Refs?
We have extensive details available.
Visit us on the web at http://www.audiofederation.com
Send us an email at
mike+neli@audiofederation.com
Or give Neli a call
at 1.303.546.6503
|
